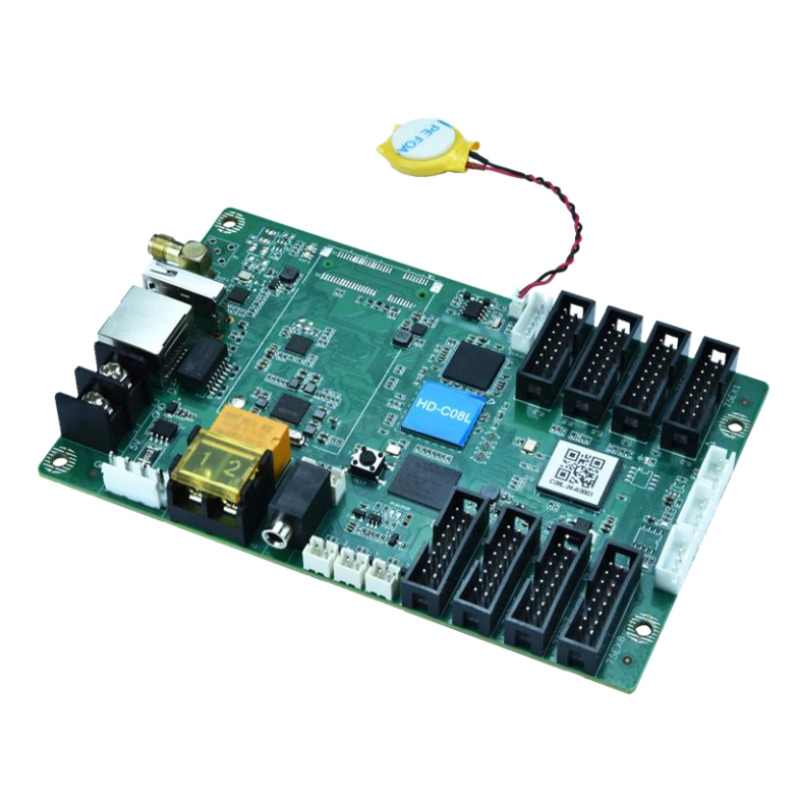

HD-C08L Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.

1.  The maximum loading capacity: 196,608 pixels

2.  The maximum width support 2,048 pixels.

3.  Equipped with Wi-Fi, Mobile APP management.

4.  With a relay to control the power supply remotely.

5.  Support optional 4G connection, Internet remote control.

6.  10 lines HUB75E ports onboard, can be used for one receiving card.

1. Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
2. The wiring methods for HD-C08L and HD-C16L card are the same, please refer to following diagram.
3.
4.

5. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.
6.

7.

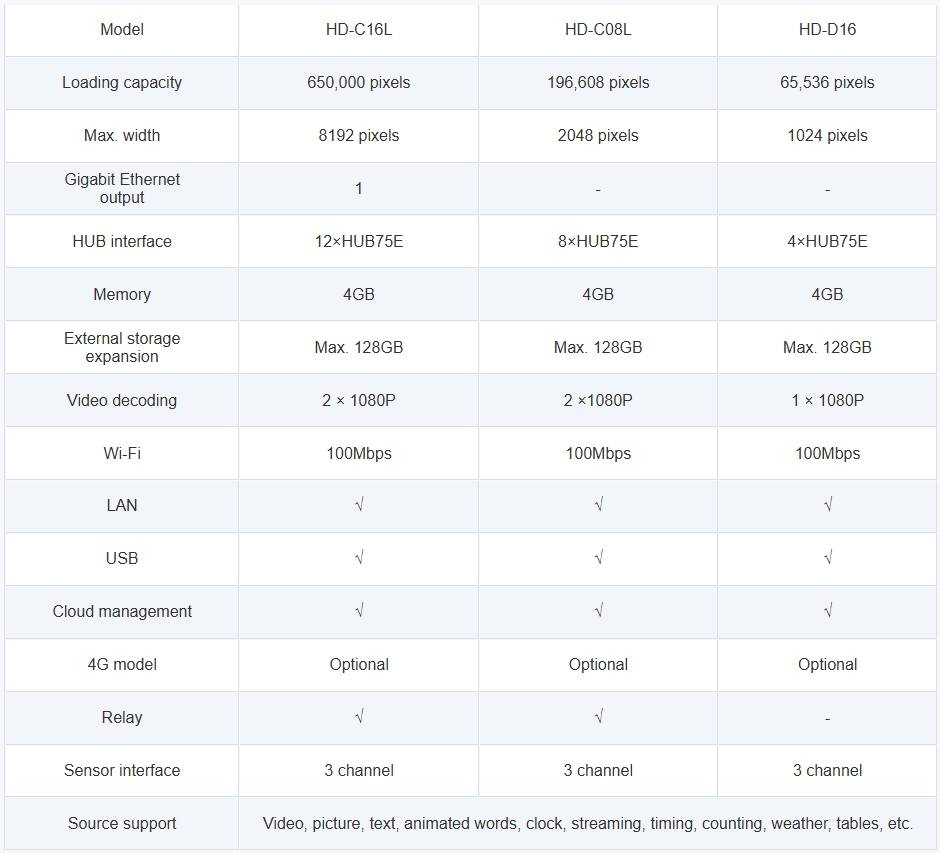

Parameters:
